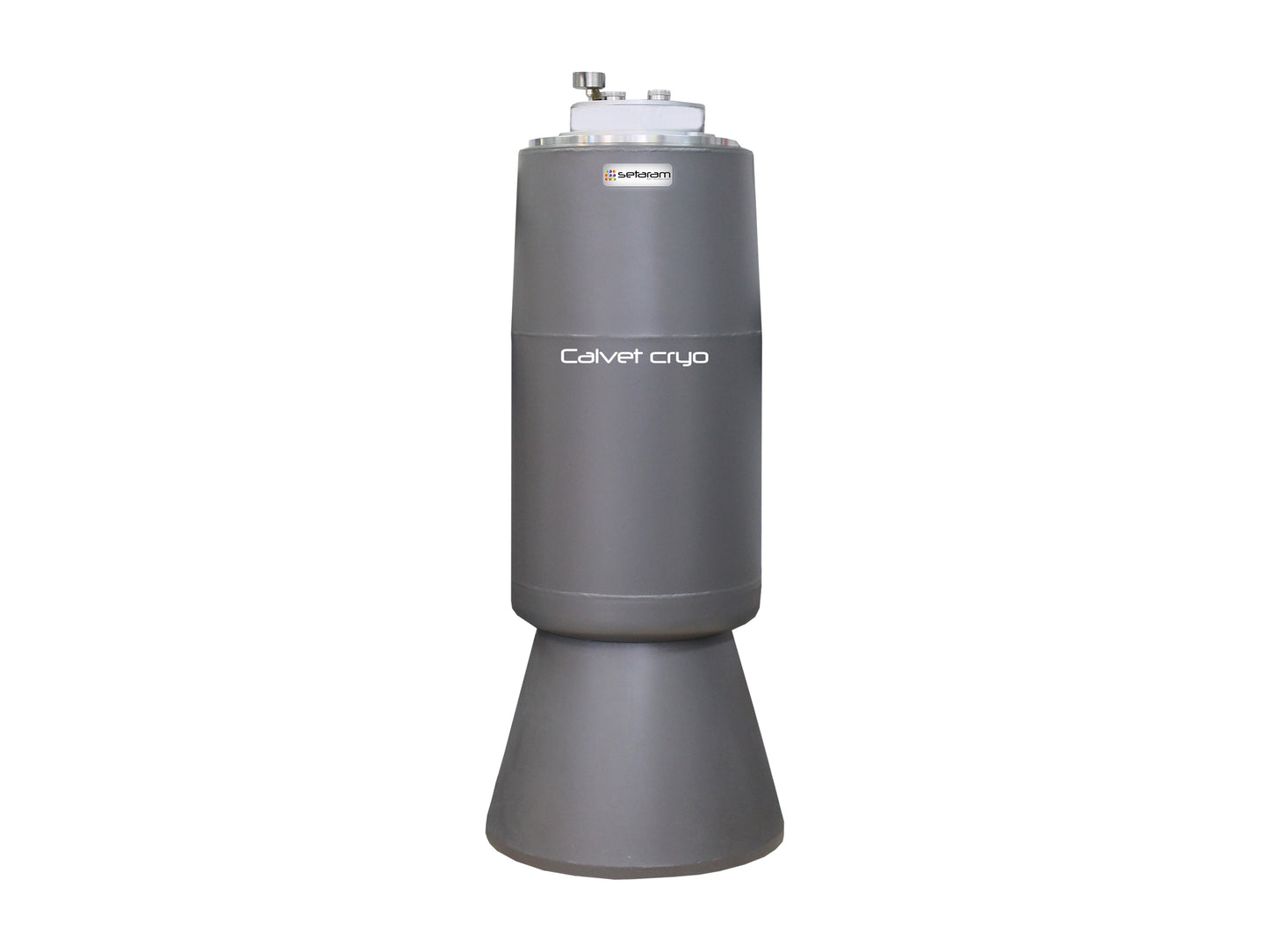

S6058732
CALVET CRYO + 2 STD VESSELS + CALISTO
CALVET CRYO + 2 STD VESSELS + CALISTO
The Calvet CRYO calorimeter offers great versatility and excellent accuracy for measuring temperature, heat, heat flow and heat capacity. Its 3D sensor, based on a network of thermocouples surrounding the measuring cells, ensures complete heat detection. It is designed to operate at sub-ambient temperatures and up to 200°C. Various cooling options are available, such as liquid nitrogen, for temperatures as low as -196°C, or a laboratory recirculating cooler. Its numerous interchangeable cells enable a wide range of operations to be carried out: high-pressure (up to 1000 bar), vacuum, mixing or reaction tests. CALVET CRYO is particularly well suited to fundamental studies at low temperatures, or in more applied fields such as the study of petroleum fluids or construction materials.
The basic package includes :
- A calorimetric block with a temperature range from ambient to 200°C (without cooling system), and adjustable temperature programming from 0.01 to 1°C/min.
- A 3D calorimetric sensor with 0.1 µW resolution.
- Purge device.
- Two standard 12.5 ml stainless steel cells for measurements at normal pressure (S60/1278).
- CS Evolution controller with 32-bit microprocessor, 24-bit A/D converter and Ethernet connection.
- CALISTO Windows software for instrument control, data acquisition and processing.
- Operating instructions are supplied on a USB key.
It must be complemented by a cooling system and cells adapted to your applications.
Discover more here
The basic package includes :
- A calorimetric block with a temperature range from ambient to 200°C (without cooling system), and adjustable temperature programming from 0.01 to 1°C/min.
- A 3D calorimetric sensor with 0.1 µW resolution.
- Purge device.
- Two standard 12.5 ml stainless steel cells for measurements at normal pressure (S60/1278).
- CS Evolution controller with 32-bit microprocessor, 24-bit A/D converter and Ethernet connection.
- CALISTO Windows software for instrument control, data acquisition and processing.
- Operating instructions are supplied on a USB key.
It must be complemented by a cooling system and cells adapted to your applications.
Discover more here
Compatible Instruments
Calvet Cryo
Lead time : 168 days View full details
CALVET CRYO + 2 STD VESSELS + CALISTO
Consumables
Spare parts
CALVET CRYO + 2 STD VESSELS + CALISTO
Consumables
Spare parts
| PRODUCT ID: | S6058180 |
|---|---|
| PRODUCT NAME: | NAPHTALENE STANDARD (AROUND 4 MG) IN SEALED CRUCIBLE |
| PRICE: | €247,00 each tax excl. |
| PRODUCT ID: | S08HJ.16293NIC |
|---|---|
| PRODUCT NAME: | NI O-RING FOR HP VESSEL (CALVET, CALVET CRYO, CALVET HT, CALVET LV) |
| PRICE: | €80,90 each tax excl. |
| PRODUCT ID: | S0457048 |
|---|---|
| PRODUCT NAME: | 1/16 ferrule |
| PRICE: | €20,70 each tax excl. |
| PRODUCT ID: | S6058462 |
|---|---|
| PRODUCT NAME: | CONNECTION TUBE (DIAMETER: 1/16) TO 1000 BAR GAS PANEL |
| PRICE: | €2.657,00 each tax excl. |
| PRODUCT ID: | S6058437 |
|---|---|
| PRODUCT NAME: | Connection tube (diameter: 1/8) between 600 or 1000 HP vessel and gas control panel up to 1000 bar. |
| PRICE: | €1.575,00 each tax excl. |
| PRODUCT ID: | S6058435 |
|---|---|
| PRODUCT NAME: | 600 BAR CELL 2 INPUTS BT2.15 - CALVET CRYO |
| PRICE: | €13.650,00 each tax excl. |
| PRODUCT ID: | S6058160 |
|---|---|
| PRODUCT NAME: | BT 2.15 MIXING VESSEL WITH MEMBRANE IN STAINLESS STEEL - NORMAL PRESSURE |
| PRICE: | €4.631,00 each tax excl. |
| PRODUCT ID: | S601523 |
|---|---|
| PRODUCT NAME: | BT2.15 - CALVET CRYO vacuum vessel in stainless steel - high pressure (100 bar max.)- 8.5 cm3 |
| PRICE: | €3.182,00 each tax excl. |
| PRODUCT ID: | S601522 |
|---|---|
| PRODUCT NAME: | CALVET CRYO STANDARD VESSEL IN HASTELLOY - HIGH PRESSURE (100 BAR MAX.) - 8.5 CM3 |
| PRICE: | €1.827,00 each tax excl. |
| PRODUCT ID: | S601521 |
|---|---|
| PRODUCT NAME: | BT2.15 - CALVET CRYO standard vessel in stainless steel - high pressure (100 bar max.) -8.5 cm3 |
| PRICE: | €903,00 each tax excl. |
| PRODUCT ID: | S601483 |
|---|---|
| PRODUCT NAME: | BT2.15 - CALVET CRYO standard hastelloy C276 vessel - normal pressure -12.5 cm3 |
| PRICE: | €966,00 each tax excl. |
| PRODUCT ID: | S601482 |
|---|---|
| PRODUCT NAME: | BT2.15 - CALVET CRYO STD ST. STEEL VESSEL - NORMAL PRESSURE -9.5 CM3 -BODY WITH INTERMEDIATE BOTTOM |
| PRICE: | €977,00 each tax excl. |
| PRODUCT ID: | S601278 |
|---|---|
| PRODUCT NAME: | BT2.15 - CALVET CRYO STANDARD STAINLESS STEEL VESSEL - NORMAL PRESSURE -12.5 CM3 |
| PRICE: | €903,00 each tax excl. |
| PRODUCT ID: | S08HJ.29196 |
|---|---|
| PRODUCT NAME: | Lower silver seal for high pressure transducer vessel (ext diam : 13.7 mm) |
| PRICE: | €46,30 each tax excl. |
| PRODUCT ID: | S08HJ.29195 |
|---|---|
| PRODUCT NAME: | Upper silver seal for high pressure transducer vessel (ext diam : 10.5mm) |
| PRICE: | €46,30 each tax excl. |
| PRODUCT ID: | S08HJ.26675 |
|---|---|
| PRODUCT NAME: | Pyrex container 7,5 ml - Diameter :12 mm for normal pressure vessels |
| PRICE: | €10,70 each tax excl. |
| PRODUCT ID: | S0812170 |
|---|---|
| PRODUCT NAME: | Teflon membrane |
| PRICE: | €3,90 each tax excl. |
| PRODUCT ID: | S0812169 |
|---|---|
| PRODUCT NAME: | Aluminum membrane |
| PRICE: | €3,90 each tax excl. |
| PRODUCT ID: | S0812158 |
|---|---|
| PRODUCT NAME: | Teflon o'ring (diameter:1,7 mm x 4 mm) |
| PRICE: | €7,20 each tax excl. |
| PRODUCT ID: | S0812157 |
|---|---|
| PRODUCT NAME: | Teflon o'ring D:12.4/14.5 |
| PRICE: | €13,20 each tax excl. |
| PRODUCT ID: | S0812154 |
|---|---|
| PRODUCT NAME: | Upper clamp ring in Teflon |
| PRICE: | €10,70 each tax excl. |
| PRODUCT ID: | S0451717 |
|---|---|
| PRODUCT NAME: | BLUE PU TUBE D:8X1.25(5.5/8) |
| PRICE: | €3,30 each tax excl. |
